ITPOD Network Packet Broker — network monitoring, management and security equipment
What are Network Packet Brokers?
What tasks network packet brokers perform
They optimize and filter network traffic, eliminate blind spots, distribute load, and support high-speed connections up to 400 Gbps. Brokers aggregate and combine traffic, which can then be filtered, deduplicated and optimized to enable more efficient use of security and performance tools.
Network packet brokers help reduce the cost of network monitoring when there are multiple collection points and high data rates. It also eliminates the need for multiple monitoring tools on the network.
![](http://d769.cdn-clients.arviol.com/wp-content/uploads/2023/08/adobe_597200536-1-1-2.png)
ITPOD Network Packet Broker.
Book a Consultation
Solution Architecture
![image](http://d769.cdn-clients.arviol.com/wp-content/uploads/2023/12/network_pocket_broker_en.png)

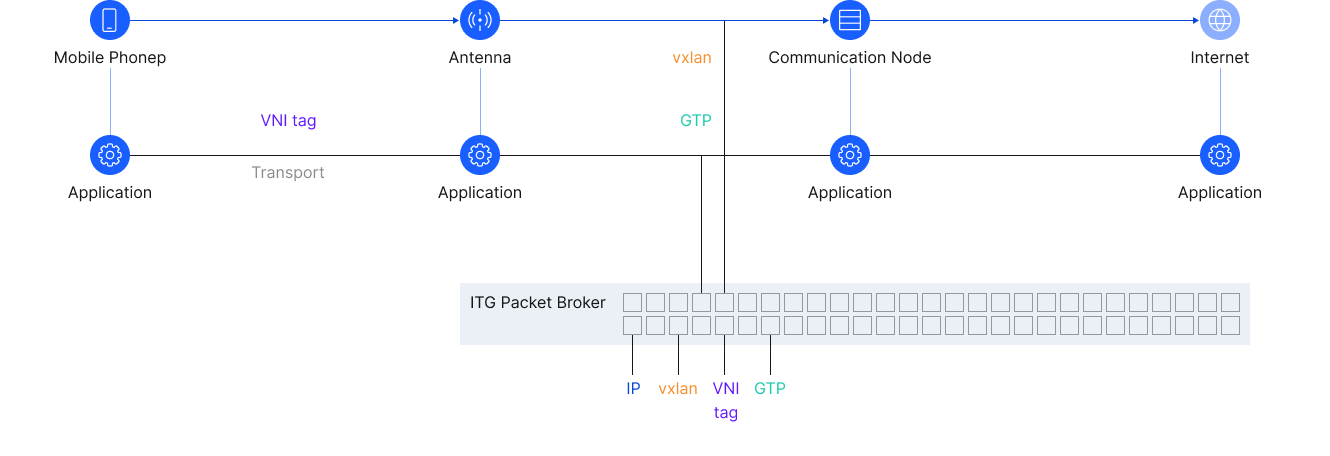

Basic scheme of network packet broker operation
![image](http://d769.cdn-clients.arviol.com/wp-content/uploads/2023/12/packet_broker_operation_basic_en.png)
ITPODNPB EX48200 is a high-performance, cost-effective network packet broker designed to perform a wide range of tasks. The device aggregates, filters, duplicates, and load balances network traffic for security, monitoring, and management.
- Filters and distributes load across 10, 40, or 100 Gbps links
- Unifies 1Gbps links with 10, 40, or 100Gbps monitoring tools
- Up to 48 1/10 Gbps ports (SFP/SFP+) and 2 40/100 Gbps ports (QSFP/QSFP28)
- QSFP28 ports support migration to 4 10/25G ports
- Support for IPv6
- Filtering and disassembling tunnels
- Flexible port licensing model (12, 24, 36 or 48 enabled ports)
- Compatible with SFP modules
from third-party vendors
![](http://d769.cdn-clients.arviol.com/wp-content/uploads/2023/12/exa48200-t_small-500x165-2.png)
- 48 full duplex 1Gbps / 10Gbps SFP ports for any type of SFP/SFP+
- 2 full duplex 40Gbps / 100Gbps ports for any type of QSFP/QSFP28
- Each port can be input and/or output depending on the application and configuration
- All QSFP/QSFP28 ports support branching cables to 4x10G or 4x25G interfaces
- Management port: (1) RJ45 10/100/1000 Mbps
- Capacity up to 1.36 Tbps
- Modular design
- Time fromturn-on to start working 180 sec.
ITPOD NPB EXA48200 Provides high-performance network management through functionality such as multi-layer filtering, tunnel parsing, load balancing with deduplication and regular expression filtering. The monitoring and detection system allows for effective identification of network vulnerabilities.
- Aggregation, filtering and load balancing
- Filtering and disassembling tunnels
- Deduplication, regular filtering, data masking and packet splitting
- Generation of network flow
- Flexible port licensing model (12, 24, 36 or 48 ports included)
- Compatible with third-party equipment
![](http://d769.cdn-clients.arviol.com/wp-content/uploads/2023/12/exa48200-t_small-500x165-2.png)
- 48 full duplex 1Gbps / 10Gbps SFP ports for any type of SFP/SFP+
- 2 full duplex 40Gbps / 100Gbps ports for any type of QSFP/QSFP28
- Each port can be input and/or output depending on the application and configuration
- All QSFP/QSFP28 ports support branchingcables to 4x10G or 4x25G interfaces
- Management port: (1) RJ45 10/100/1000 Mbps
- Capacity up to 1.36 Tbps
- Modular design
- Time fromturn-on to start working 180 secs.
ITPOD NPB EXA64100 is a high-performance network packet broker that aggregates, filters, duplicates and distributes network traffic for security, monitoring and management. The device enables all filtering functions to be implemented in hardware for high throughput and performance.
- Filtering, balancing and prioritizing traffic at 10, 25, 40 or 100 Gbps in conjunction with monitoring tools
- Combines multiple 10Gbps links into 25, 40 or 100Gbps links
- 64 x 40/100 Gbps (QSFP/QSFP28)
- QSFP28 ports support branching to 4 10/25G ports
- QSFP28 ports support branching to 4 10/25G ports
- Supports buffering of data packets
- Supports packet splitting (any customizable packet size)
- Support for IPv6
- Cleanup Tunnel header
- No additional fees for port licensing or software feature licensing. All features and applications are included in the price

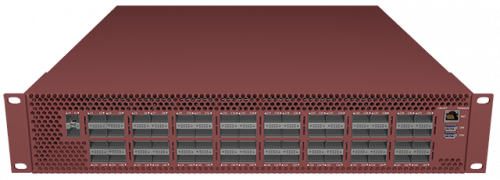

![](http://d769.cdn-clients.arviol.com/wp-content/uploads/2023/12/exa64100_t_small-500x180-1.png)
- 64 full-duplex 40Gbps / 100Gbps ports for any type of QSFP/QSFP28
- 2 10Gbps SFP+ or 25Gbps SFP28 ports
- Each port can be input and/or output depending on the application and configuration
- All QSFP/QSFP28 ports support tap cables to 4x10G or 4x25G interfaces
- Management port configuration: (1) RJ45 10/100/1000 Mbps
- Easy to use web interface
- Capacity up to 12.8 Tbps
- 4.8 billion frames per second
- Modular design
- Time ofrom power on to start working 180 sec.
ITG NPB EXA32100A is a high-performance network packet broker that aggregates, filters, duplicates and load balances network traffic for security, monitoring and management. The device enables all filtering functions to be implemented in hardware for high throughput and performance.
- Filters and distributes load across 10, 25, 40 or 100 Gbps links in conjunction with monitoring tools
- Combines multiple 10Gbps channels into 25, 40 or 100Gbps channels
- 32 40/100 Gbps ports (QSFP/QSFP28)
- QSFP28 ports support branching to 4 10/25G ports
- Supports buffering of data packets
- Supports packet splitting (any customizable packet size)
- Support for IPv6
- Cleanup Tunnel header
- No additional fees for port licensing or software feature licensing. All features and applications are included in the price

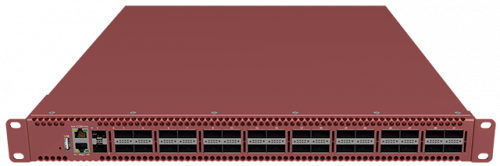

![](http://d769.cdn-clients.arviol.com/wp-content/uploads/2023/12/exa32100a_t_small-500x166-1.png)
- 32 full duplex 40Gbps / 100Gbps ports for any type of QSFP/QSFP28
- Each port can be input and/or output depending on the application and configuration
- All QSFP/QSFP 28 ports support tapping cables to 4x10G or 4x25G interfaces
- Management port configuration: (1) RJ45 10/100/1000 Mbps
- Easy to use web interface
- Capacity up to 6.4 Tbps
- 2.4 billion frames per second
- Modular design
- Time ofrom power on to start working 180 sec.
