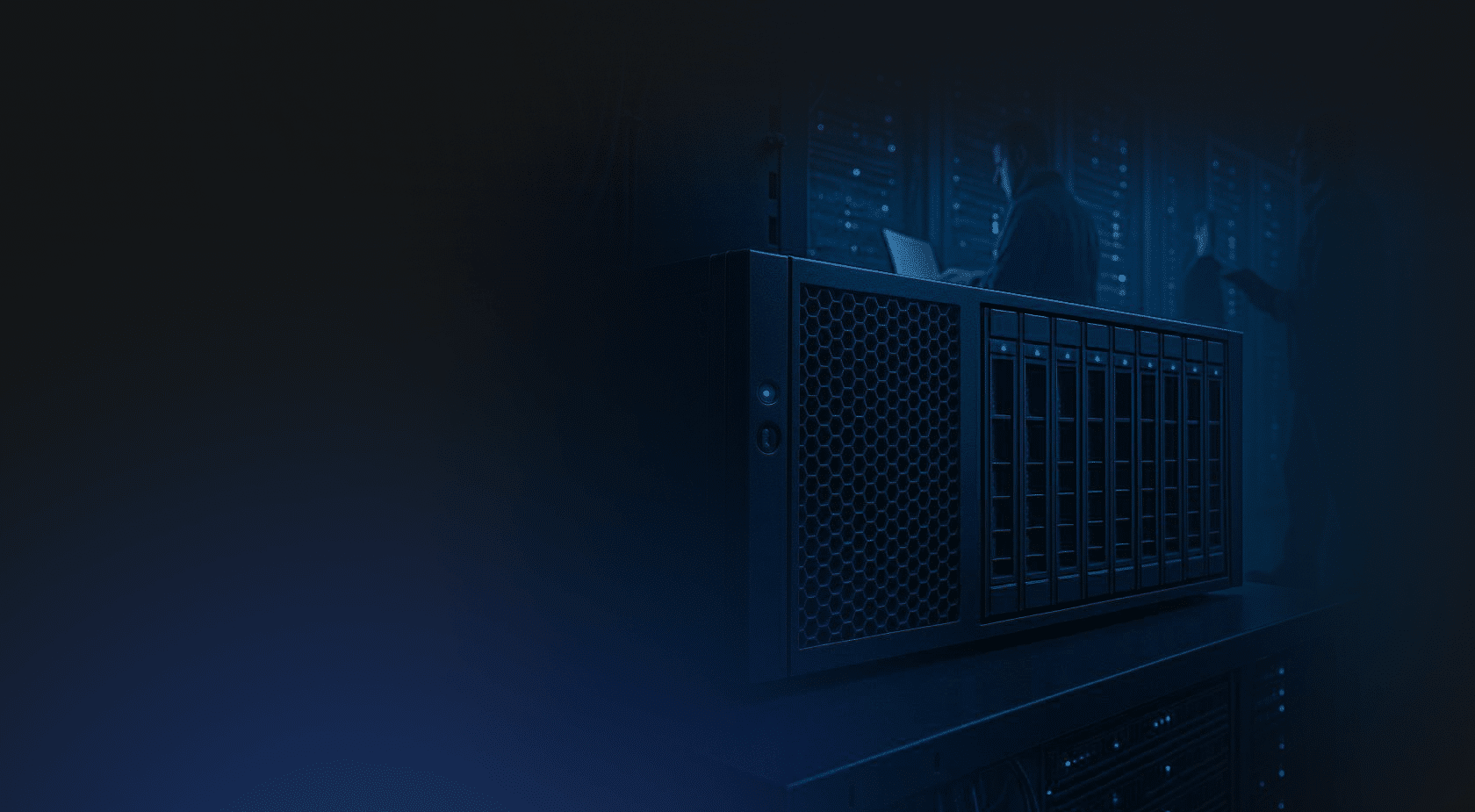

NetApp EF-Series —
HPC-level performance, accessible to every business.
The NetApp® EF-Series is a family of entry-level and midrange all-flash arrays that deliver high performance and fast data access for quicker insights.
Powered by NVMe flash, these systems provide high IOPS, sub-100μs latency, and up to 44GB/s bandwidth — ideal for block workloads and demanding applications like media, HPC, and AI (with NVIDIA DGX SuperPOD)
Powered by NVMe flash, these systems provide high IOPS, sub-100μs latency, and up to 44GB/s bandwidth — ideal for block workloads and demanding applications like media, HPC, and AI (with NVIDIA DGX SuperPOD)
Comparison of EF600, EF600C, EF300, EF300C models
| Model | Maximum SSDs | Controller chassis form factor | Storage networking supported | OS version | Shelves and media |
|---|---|---|---|---|---|
|
EF600
|
24
|
2U; 24 internal NVMe SSD slots
|
NVMe/IB, iSER/IB, SRP/IB, NVMe/RoCE, NVMe/FC, FC, iSCSI
|
SANtricity OS 11.70.5R1 or later
|
DE212C (2U, 12 drives, 3.5” NL-SAS and 2.5” SAS); DE224C (2U, 24 drives, 2.5” SAS); DE460C (4U, 60 drive, 3.5” NL-SAS and 2.5” SAS)
|
|
EF600C
|
24
|
2U; 24 internal NVMe SSD slots
|
NVMe/IB, iSER/IB, SRP/IB, NVMe/RoCE, NVMe/FC, FC, iSCSI
|
SANtricity OS 11.90R1 or later
|
|
|
EF300
|
24
|
2U; 24 internal NVMe SSD slots
|
NVMe/IB, iSER/IB, SRP/IB, NVMe/RoCE, NVMe/FC, FC, iSCSI
|
SANtricity OS 11.70.5R1 or later
|
DE212C (2U, 12 drives, 3.5” NL-SAS and 2.5” SAS); DE224C (2U, 24 drives, 2.5” SAS); DE460C (4U, 60 drive, 3.5” NL-SAS and 2.5” SAS)
|
|
EF300C
|
24
|
2U; 24 internal NVMe SSD slots
|
NVMe/IB, iSER/IB, SRP/IB, NVMe/RoCE, NVMe/FC, FC, iSCSI
|
SANtricity OS 11.90R1 or later
|
Our customers
NetApp EF-Series
If you are interested in this model, please fill out the application form and we will contact you within the next 24 hours
EF600 Specifications
NetApp EF600 is a high-performance NVMe all-flash storage system designed for workloads that demand speed, consistent performance, and ultra-low latency.
Delivering up to 44 GB/s of bandwidth and sub-100 microsecond latency, the EF600 is ideal for high-performance computing (HPC), real-time analytics, financial transactions, and AI/ML infrastructures.
It combines NVMe efficiency with enterprise-grade reliability, ensuring maximum performance for mission-critical applications and block workloads.
| Form factor | 4U chassis with two HA controllers |
|---|---|
|
Controller chassis form factor1
|
2U; 24 internal NVMe SSD slots
|
|
SAS Expansion shelves
|
Hybrid: 4U with 60 slots and 2U with 12 slots; All-flash: 2U with 24 SAS SSD slots
|
|
Controller memory
|
32GB, 128GB
|
|
Maximum SSDs
|
24
|
|
Maximum raw capacity in base system
|
367TB
|
|
Maximum raw capacity with expansion
|
9.6PB hybrid, or 1.8PB all-SSD
|
|
Maximum IOPS
|
Up to 2,000,000
|
|
Maximum read bandwidth2
|
44GBps
|
|
Maximum write bandwidth2
|
13GBps
|
|
Power consumption
|
Typical: 979W Maximum: 1128W
|
|
IO connectivity per array
|
4 ports 200Gb NVMe/IB, NVMe/RoCE 4 ports 200Gb iSER/IB 8 ports 100Gb NVMe/IB, NVMe.RoCE 8 ports 100Gb iSER/IB, SRP/IB 16 ports 32 Gb NVMe/FC 16 ports 32Gb SCSI FC 16 ports 25Gb iSCSI
|
|
Storage networking supported
|
NVMe/IB, iSER/IB, SRP/IB, NVMe/RoCE, NVMe/FC, FC, iSCSI
|
|
OS version
|
SANtricity OS 11.70.5R1 or later
|
|
Shelves and media
|
DE212C (2U, 12 drives, 3.5” NL-SAS and 2.5” SAS); DE224C (2U, 24 drives, 2.5” SAS); DE460C (4U, 60 drive, 3.5” NL-SAS and 2.5” SAS)
|
|
Host/client OS supported
|
Windows Server, Linux, MacOS, VMware
|
Our customers
EF600C Specifications
High capacity combined with good performance — especially for block workloads where storage volume is critical.
If your requirements involve managing large amounts of data, and while performance remains important, you can trade a bit of it for higher capacity and cost efficiency.
| From factor | 2U chassis with HA controllers |
|---|---|
|
Controller chassis form factor
|
2U; 24 internal NVMe SSD slots
|
|
SAS Expansion shelves
|
n/a
|
|
Controller memory
|
32GB, 128GB
|
|
Maximum SSDs
|
24
|
|
Maximum raw capacity in base system
|
1.5PB
|
|
Maximum raw capacity with expansion
|
1.5PB
|
|
Maximum IOPS
|
Up to 1,000,000
|
|
Maximum read bandwidth
|
44GBps
|
|
Maximum write bandwidth
|
13GBps
|
|
Power consumption
|
Typical: 979W Maximum: 1128W
|
|
IO connectivity per array
|
4 ports 200Gb NVMe/IB, NVMe/RoCE 4 ports 200Gb iSER/IB 8 ports 100Gb NVMe/IB, NVMe.RoCE 8 ports 100Gb iSER/IB, SRP/IB 16 ports 32 Gb NVMe/FC 16 ports 32Gb SCSI FC 16 ports 25Gb iSCSI
|
|
Storage networking supported
|
NVMe/IB, iSER/IB, SRP/IB, NVMe/RoCE, NVMe/FC, FC, iSCSI
|
|
OS version
|
SANtricity OS 11.90R1 or later
|
|
Shelves and media
|
|
|
Host/client OS supported
|
Windows Server, Linux, MacOS, VMware
|
Our customers
NetApp EF-Series
If you are interested in this model, please fill out the application form and we will contact you within the next 24 hours
EF300 Specifications
Well-suited for workloads with high intensity but slightly lower requirements than top-tier systems — for example, mid-tier databases, analytics, or block storage for applications.
It is ideal when you need a powerful system, but not necessarily a flagship solution like the EF600 — offering a potentially better balance of cost and performance efficiency.
| Form factor | 2U chassis with HA controllers |
|---|---|
|
Controller chassis form factor
|
2U; 24 internal NVMe SSD slots
|
|
SAS Expansion shelves
|
Hybrid: 4U with 60 slots and 2U with 12 slots; All-flash: 2U with 24 SAS SSD slots
|
|
Controller memory
|
16GB
|
|
Maximum SSDs
|
24
|
|
Maximum raw capacity in base system
|
367TB
|
|
Maximum raw capacity with expansion
|
5.7PB hybrid, or 1.8PB all-SSD
|
|
Maximum IOPS
|
Up to 670,000
|
|
Maximum read bandwidth
|
20GBps
|
|
Maximum write bandwidth
|
9GBps
|
|
Power consumption
|
Typical: 643W Maximum: 870W
|
|
IO connectivity per array
|
4 ports 100Gb NVMe/IB, NVMe/RoCE 4 ports 100Gb iSER/IB, SRP/IB 8 ports 32 Gb NVMe/FC 8 ports 32Gb SCSI FC 8 ports 25Gb iSCSI
|
|
Storage networking supported
|
NVMe/IB, iSER/IB, SRP/IB, NVMe/RoCE, NVMe/FC, FC, iSCSI
|
|
OS version
|
SANtricity OS 11.70.5R1 or later
|
|
Shelves and media
|
DE212C (2U, 12 drives, 3.5” NL-SAS and 2.5” SAS); DE224C (2U, 24 drives, 2.5” SAS); DE460C (4U, 60 drive, 3.5” NL-SAS and 2.5” SAS)
|
|
Host/client OS supported
|
Windows Server, Linux, MacOS, VMware
|
Our customers
NetApp EF-Series
If you are interested in this model, please fill out the application form and we will contact you within the next 24 hours
EF300C Specifications
Suitable when you need “large data capacity + solid performance,” but not necessarily a top-tier system like the EF600.
It’s a great fit for mid-sized companies looking to expand their storage without major compromises.
If the main goal is to maximize capacity, rack density, and cost efficiency — with decent performance — and ultra-low latency or peak IOPS like the EF600 are not required.
| Form factor | 2U chassis with HA controllers |
|---|---|
|
Controller chassis form factor
|
2U; 24 internal NVMe SSD slots
|
|
SAS Expansion shelves
|
n/a
|
|
Controller memory
|
16GB
|
|
Maximum SSDs
|
24
|
|
Maximum raw capacity in base system
|
1.5PB
|
|
Maximum raw capacity with expansion
|
1.5PB
|
|
Maximum IOPS
|
Up to 350,000
|
|
Maximum read bandwidth
|
20GBps
|
|
Maximum write bandwidth
|
9GBps
|
|
Power consumption
|
Typical: 643W Maximum: 870W
|
|
IO connectivity per array
|
4 ports 100Gb NVMe/IB, NVMe/RoCE 4 ports 100Gb iSER/IB, SRP/IB 8 ports 32 Gb NVMe/FC 8 ports 32Gb SCSI FC 8 ports 25Gb iSCSI
|
|
Storage networking supported
|
NVMe/IB, iSER/IB, SRP/IB, NVMe/RoCE, NVMe/FC, FC, iSCSI
|
|
OS version
|
SANtricity OS 11.90R1 or later
|
|
Shelves and media
|
|
|
Host/client OS supported
|
Windows Server, Linux, MacOS, VMware
|
